Detailed Description

Definition at line 37 of file homogenized_density_function_base.h.

#include <homogenized_density_function_base.h>

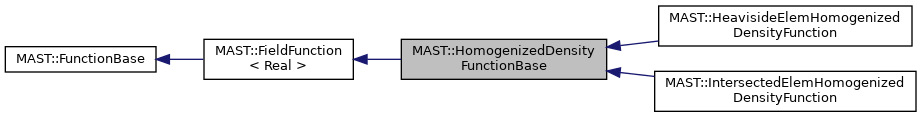

Inheritance diagram for MAST::HomogenizedDensityFunctionBase:

[legend]

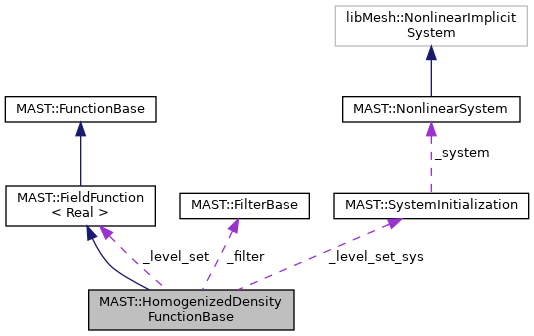

Collaboration diagram for MAST::HomogenizedDensityFunctionBase:

[legend]

Public Member Functions
	HomogenizedDensityFunctionBase (const std::string &nm)

virtual	~HomogenizedDensityFunctionBase ()

virtual void	clear_element_volume_fraction_sensitivity ()

virtual void	clear_element_volume_fractions ()

virtual bool	depends_on (const MAST::FunctionBase &f) const
	returns true if the function depends on the provided value More...

virtual void	derivative (const MAST::FunctionBase &f, const libMesh::Point &p, const Real t, Real &v) const
	calculates the value of the derivative of function with respect to the function `f` at the specified point, `p`, and time, `t`, and returns it in `v`. More...

Real	get_elem_volume_fraction (const libMesh::Elem &e) const

const std::map< const libMesh::Elem *, Real > &	get_elem_volume_fraction_map () const

Real	get_elem_volume_fraction_sensitivity (const MAST::FunctionBase &f, const libMesh::Elem &e) const

const std::map< const libMesh::Elem , Real >	get_elem_volume_fraction_sensitivity_map (const MAST::FunctionBase &f) const

virtual void	init (MAST::SystemInitialization &level_set_sys, libMesh::MeshBase &analysis_mesh, MAST::FieldFunction< Real > &level_set, MAST::FilterBase &filter)

virtual void	initialize_element_volume_fraction_sensitivity (const MAST::FunctionBase &f)=0

virtual void	initialize_element_volume_fractions ()=0

virtual void	operator() (const libMesh::Point &p, const Real t, Real &v) const
	calculates the value of the function at the specified point, `p`, and time, `t`, and returns it in `v`. More...

Public Member Functions inherited from MAST::FieldFunction< Real >
	FieldFunction (const std::string &nm)

virtual void	derivative (const MAST::FunctionBase &f, Real &v) const
	calculates the value of the function derivative and returns it in `v`. More...

virtual void	operator() (Real &v) const
	calculates the value of the function and returns it in `v`. More...

virtual void	perturbation (Real &v) const
	calculates the perturbation and returns it in `v`. More...

virtual void	perturbation (const libMesh::Point &p, const Real t, Real &v) const
	calculates the value of a perturbation in function at the specified point, `p`, and time, `t`, and returns it in `v`. More...

Public Member Functions inherited from MAST::FunctionBase
	FunctionBase (const std::string &nm, const bool is_field_func)
	initializes the parameter to the given name More...

	FunctionBase (const MAST::FunctionBase &f)
	Copy constructor. More...

virtual	~FunctionBase ()
	virtual destructor More...

virtual bool	is_shape_parameter () const

virtual bool	is_topology_parameter () const

const std::string &	name () const
	returns the name of this function More...

virtual void	set_as_shape_parameter (bool f)

virtual void	set_as_topology_parameter (bool f)

Protected Attributes
libMesh::MeshBase *	_analysis_mesh

std::map< const libMesh::Elem *, Real >	_elem_volume_fraction

std::map< const MAST::FunctionBase , std::map< const libMesh::Elem , Real > >	_elem_volume_fraction_sensitivity

MAST::FilterBase *	_filter

MAST::FieldFunction< Real > *	_level_set

MAST::SystemInitialization *	_level_set_sys

std::unique_ptr< libMesh::PointLocatorBase >	_sub_point_locator

Protected Attributes inherited from MAST::FunctionBase
std::set< const MAST::FunctionBase * >	_functions
	set of functions that `this` function depends on More...

bool	_is_field_func
	flag to store the nature of field function More...

bool	_is_shape_parameter

bool	_is_topology_parameter

std::string	_name
	name of this parameter More...

Constructor & Destructor Documentation

◆ HomogenizedDensityFunctionBase()

MAST::HomogenizedDensityFunctionBase::HomogenizedDensityFunctionBase ( const std::string & nm )

Definition at line 27 of file homogenized_density_function_base.cpp.

◆ ~HomogenizedDensityFunctionBase()

MAST::HomogenizedDensityFunctionBase::~HomogenizedDensityFunctionBase ( )

virtual

Definition at line 38 of file homogenized_density_function_base.cpp.

Member Function Documentation

◆ clear_element_volume_fraction_sensitivity()

virtual void MAST::HomogenizedDensityFunctionBase::clear_element_volume_fraction_sensitivity ( )

inlinevirtual

Definition at line 80 of file homogenized_density_function_base.h.

◆ clear_element_volume_fractions()

virtual void MAST::HomogenizedDensityFunctionBase::clear_element_volume_fractions ( )

inlinevirtual

Definition at line 77 of file homogenized_density_function_base.h.

◆ depends_on()

virtual bool MAST::HomogenizedDensityFunctionBase::depends_on ( const MAST::FunctionBase & f ) const

inlinevirtual

returns true if the function depends on the provided value

Reimplemented from MAST::FunctionBase.

Definition at line 51 of file homogenized_density_function_base.h.

◆ derivative()

void MAST::HomogenizedDensityFunctionBase::derivative	(	const MAST::FunctionBase &	f,
		const libMesh::Point &	p,
		const Real	t,
		Real &	v
	)		const

virtual

calculates the value of the derivative of function with respect to the function f at the specified point, p, and time, t, and returns it in v.

Reimplemented from MAST::FieldFunction< Real >.

Definition at line 84 of file homogenized_density_function_base.cpp.

◆ get_elem_volume_fraction()

Real MAST::HomogenizedDensityFunctionBase::get_elem_volume_fraction ( const libMesh::Elem & e ) const

Definition at line 102 of file homogenized_density_function_base.cpp.

◆ get_elem_volume_fraction_map()

const std::map<const libMesh::Elem*, Real>& MAST::HomogenizedDensityFunctionBase::get_elem_volume_fraction_map ( ) const

inline

Definition at line 59 of file homogenized_density_function_base.h.

◆ get_elem_volume_fraction_sensitivity()

Real MAST::HomogenizedDensityFunctionBase::get_elem_volume_fraction_sensitivity	(	const MAST::FunctionBase &	f,
		const libMesh::Elem &	e
	)		const

Definition at line 116 of file homogenized_density_function_base.cpp.

◆ get_elem_volume_fraction_sensitivity_map()

const std::map< const libMesh::Elem *, Real > * MAST::HomogenizedDensityFunctionBase::get_elem_volume_fraction_sensitivity_map ( const MAST::FunctionBase & f ) const

Definition at line 135 of file homogenized_density_function_base.cpp.

◆ init()

void MAST::HomogenizedDensityFunctionBase::init	(	MAST::SystemInitialization &	level_set_sys,
		libMesh::MeshBase &	analysis_mesh,
		MAST::FieldFunction< Real > &	level_set,
		MAST::FilterBase &	filter
	)

virtual

Definition at line 44 of file homogenized_density_function_base.cpp.

◆ initialize_element_volume_fraction_sensitivity()

virtual void MAST::HomogenizedDensityFunctionBase::initialize_element_volume_fraction_sensitivity ( const MAST::FunctionBase & f )

pure virtual

Implemented in MAST::HeavisideElemHomogenizedDensityFunction, and MAST::IntersectedElemHomogenizedDensityFunction.

◆ initialize_element_volume_fractions()

virtual void MAST::HomogenizedDensityFunctionBase::initialize_element_volume_fractions ( )

pure virtual

Implemented in MAST::HeavisideElemHomogenizedDensityFunction, and MAST::IntersectedElemHomogenizedDensityFunction.

◆ operator()()

void MAST::HomogenizedDensityFunctionBase::operator()	(	const libMesh::Point &	p,
		const Real	t,
		Real &	v
	)		const

virtual

calculates the value of the function at the specified point, p, and time, t, and returns it in v.

Reimplemented from MAST::FieldFunction< Real >.

Definition at line 61 of file homogenized_density_function_base.cpp.

Member Data Documentation

◆ _analysis_mesh

libMesh::MeshBase* MAST::HomogenizedDensityFunctionBase::_analysis_mesh

protected

Definition at line 86 of file homogenized_density_function_base.h.

◆ _elem_volume_fraction

std::map<const libMesh::Elem*, Real> MAST::HomogenizedDensityFunctionBase::_elem_volume_fraction

protected

Definition at line 92 of file homogenized_density_function_base.h.

◆ _elem_volume_fraction_sensitivity

std::map<const MAST::FunctionBase*, std::map<const libMesh::Elem*, Real> > MAST::HomogenizedDensityFunctionBase::_elem_volume_fraction_sensitivity

protected

Definition at line 95 of file homogenized_density_function_base.h.

◆ _filter

MAST::FilterBase* MAST::HomogenizedDensityFunctionBase::_filter

protected

Definition at line 90 of file homogenized_density_function_base.h.

◆ _level_set

MAST::FieldFunction<Real>* MAST::HomogenizedDensityFunctionBase::_level_set

protected

Definition at line 88 of file homogenized_density_function_base.h.

◆ _level_set_sys

MAST::SystemInitialization* MAST::HomogenizedDensityFunctionBase::_level_set_sys

protected

Definition at line 84 of file homogenized_density_function_base.h.

◆ _sub_point_locator

std::unique_ptr<libMesh::PointLocatorBase> MAST::HomogenizedDensityFunctionBase::_sub_point_locator

protected

Definition at line 97 of file homogenized_density_function_base.h.

The documentation for this class was generated from the following files:

/home/travis/build/MASTmultiphysics/mast-multiphysics/src/level_set/homogenized_density_function_base.h
/home/travis/build/MASTmultiphysics/mast-multiphysics/src/level_set/homogenized_density_function_base.cpp
