Detailed Description

Storage class for a mesh consisting of a single element used in testing.

The single element has an ID of 0 (zero) and is placed into the subdomain of ID 0 (zero).

Definition at line 46 of file mast_mesh.h.

#include <mast_mesh.h>

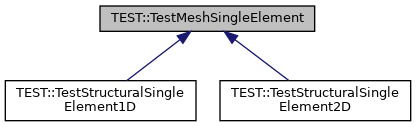

Inheritance diagram for TEST::TestMeshSingleElement:

Public Member Functions
	TestMeshSingleElement (libMesh::ElemType e_type, RealMatrixX &coordinates)
	Construct a single element mesh using the specified type and nodal coordinates. More...

void	update_coordinates (RealMatrixX &new_coordinates)
	Update the nodal coordinates in the mesh. More...

Public Attributes
libMesh::ReplicatedMesh	mesh
	The actual libMesh mesh object. More...

int	n_dim
	Dimension of the test element (1, 2, 3) More...

int	n_elems
	Number of elements in the test mesh. More...

int	n_nodes
	Number of nodes per element in the test mesh. More...

libMesh::Elem *	reference_elem
	Pointer to the actual libMesh element object. More...

Constructor & Destructor Documentation

◆ TestMeshSingleElement()

TEST::TestMeshSingleElement::TestMeshSingleElement	(	libMesh::ElemType	e_type,
		RealMatrixX &	coordinates
	)

inline

Construct a single element mesh using the specified type and nodal coordinates.

Nodal connectivity is specified according to the Exodus-II mesh format. Valid element types are currently:

1D: EDGE2
2D: QUAD4

Parameters

e_type	libMesh element type to create
coordinates	(3 by n) matrix where each column specifies a node with rows giving the x, y, z locations

Definition at line 68 of file mast_mesh.h.

Member Function Documentation

◆ update_coordinates()

void TEST::TestMeshSingleElement::update_coordinates ( RealMatrixX & new_coordinates )

inline

Update the nodal coordinates in the mesh.

Parameters

new_coordinates (3 by n) matrix where each column specifies a node with rows giving the x, y, z locations

Definition at line 113 of file mast_mesh.h.

Member Data Documentation

◆ mesh

libMesh::ReplicatedMesh TEST::TestMeshSingleElement::mesh

The actual libMesh mesh object.

Definition at line 52 of file mast_mesh.h.

◆ n_dim

int TEST::TestMeshSingleElement::n_dim

Dimension of the test element (1, 2, 3)

Definition at line 50 of file mast_mesh.h.

◆ n_elems

int TEST::TestMeshSingleElement::n_elems

Number of elements in the test mesh.

Definition at line 48 of file mast_mesh.h.

◆ n_nodes

int TEST::TestMeshSingleElement::n_nodes

Number of nodes per element in the test mesh.

Definition at line 49 of file mast_mesh.h.

◆ reference_elem

libMesh::Elem* TEST::TestMeshSingleElement::reference_elem

Pointer to the actual libMesh element object.

Definition at line 51 of file mast_mesh.h.

The documentation for this class was generated from the following file:

/home/travis/build/MASTmultiphysics/mast-multiphysics/tests/base/mast_mesh.h
