Detailed Description

This implements the computation of KS-constraint aggregation functional for the stress constraint.

Definition at line 41 of file ks_stress_output.h.

#include <ks_stress_output.h>

Inheritance diagram for MAST::KSStressStrainOutput:

[legend]

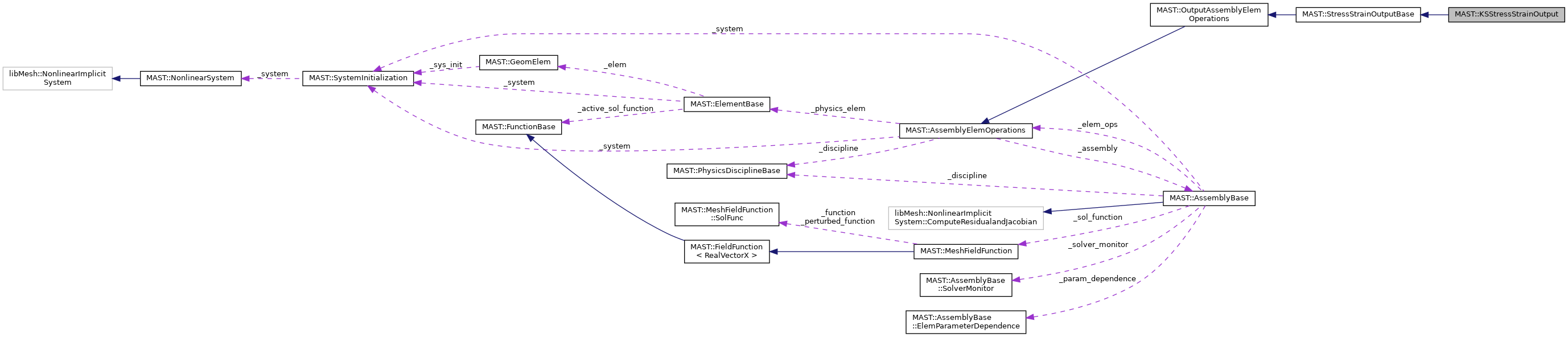

Collaboration diagram for MAST::KSStressStrainOutput:

[legend]

Public Member Functions
	KSStressStrainOutput ()
	default constructor More...

virtual	~KSStressStrainOutput ()

virtual void	functional_boundary_sensitivity_for_elem (const MAST::FunctionBase &f, const libMesh::dof_id_type e_id, Real &dsigma_vm_val_df) const
	calculates and returns the boundary sensitivity of von Mises p-norm functional for the element `e`. More...

virtual void	functional_for_all_elems ()
	calculates and returns the von Mises p-norm functional for all the elements that this object currently stores data for. More...

virtual void	functional_sensitivity_for_elem (const MAST::FunctionBase &f, const libMesh::dof_id_type e_id, Real &dsigma_vm_val_df) const
	calculates and returns the sensitivity of von Mises p-norm functional for the element `e`. More...

virtual void	functional_state_derivartive_for_elem (const libMesh::dof_id_type e_id, RealVectorX &dq_dX) const
	calculates and returns the derivative of von Mises p-norm functional wrt state vector for the specified element. More...

Public Member Functions inherited from MAST::StressStrainOutputBase
	StressStrainOutputBase ()
	default constructor More...

virtual	~StressStrainOutputBase ()

virtual MAST::StressStrainOutputBase::Data &	add_stress_strain_at_boundary_qp_location (const MAST::GeomElem &e, const unsigned int s, const unsigned int qp, const libMesh::Point &quadrature_pt, const libMesh::Point &physical_pt, const RealVectorX &stress, const RealVectorX &strain, Real JxW_Vn)
	add the stress tensor associated with the `qp` on side `s` of element `e`. More...

virtual MAST::StressStrainOutputBase::Data &	add_stress_strain_at_qp_location (const MAST::GeomElem &e, const unsigned int qp, const libMesh::Point &quadrature_pt, const libMesh::Point &physical_pt, const RealVectorX &stress, const RealVectorX &strain, Real JxW)
	add the stress tensor associated with the qp. More...

void	clear ()
	clears the data structure of any stored values so that it can be used for another element. More...

virtual void	clear_sensitivity_data ()
	clears the data stored for sensitivity analysis. More...

virtual void	evaluate ()
	this evaluates all relevant stress components on the element to evaluate the p-averaged quantity. More...

virtual void	evaluate_sensitivity (const MAST::FunctionBase &f)
	this evaluates all relevant stress sensitivity components on the element to evaluate the p-averaged quantity sensitivity. More...

virtual void	evaluate_shape_sensitivity (const MAST::FunctionBase &f)
	this evaluates all relevant shape sensitivity components on the element. More...

virtual void	evaluate_topology_sensitivity (const MAST::FunctionBase &f)
	this evaluates all relevant topological sensitivity components on the element. More...

virtual void	evaluate_topology_sensitivity (const MAST::FunctionBase &f, const MAST::FieldFunction< RealVectorX > &vel)
	This evaluates the contribution to the topology sensitivity on the boundary. More...

virtual void	functional_boundary_sensitivity_for_all_elems (const MAST::FunctionBase &f, Real &dsigma_vm_val_df) const
	calculates and returns the sensitivity of von Mises p-norm functional for all the elements that this object currently stores data for. More...

virtual void	functional_sensitivity_for_all_elems (const MAST::FunctionBase &f, Real &dsigma_vm_val_df) const
	calculates and returns the sensitivity of von Mises p-norm functional for all the elements that this object currently stores data for. More...

Real	get_maximum_von_mises_stress () const

Real	get_p_stress_val ()

virtual const std::map< const libMesh::dof_id_type, std::vector< MAST::StressStrainOutputBase::Data * > > &	get_stress_strain_data () const

virtual const std::vector< MAST::StressStrainOutputBase::Data * > &	get_stress_strain_data_for_elem (const MAST::GeomElem &e) const

virtual MAST::StressStrainOutputBase::Data &	get_stress_strain_data_for_elem_at_qp (const MAST::GeomElem &e, const unsigned int qp)

MAST::BoundaryConditionBase *	get_thermal_load_for_elem (const MAST::GeomElem &elem)

virtual void	init (const MAST::GeomElem &elem)
	initialize for the element. More...

unsigned int	n_boundary_stress_strain_data_for_elem (const GeomElem &e) const

unsigned int	n_stress_strain_data_for_elem (const MAST::GeomElem &e) const

virtual void	output_derivative_for_elem (RealVectorX &dq_dX)
	calculates the derivative of p-norm von Mises stress for the norm identified using `set_p_val()`. More...

virtual Real	output_for_elem ()
	should not get called for this output. More...

virtual Real	output_sensitivity_for_elem (const MAST::FunctionBase &p)

virtual Real	output_sensitivity_total (const MAST::FunctionBase &p)

virtual Real	output_total ()

bool	primal_data_initialized () const

void	set_aggregation_coefficients (Real p1, Real p2, Real rho, Real sigma0)
	sets the norm for calculation of stress functional More...

virtual void	set_elem_data (unsigned int dim, const libMesh::Elem &ref_elem, MAST::GeomElem &elem) const
	sets the structural element y-vector if 1D element is used. More...

void	set_stress_plot_mode (bool f)
	tells the object that the calculation is for stress to be output for plotting. More...

bool	stress_plot_mode () const

virtual void	zero_for_analysis ()
	zeroes the output quantity values stored inside this object so that assembly process can begin. More...

virtual void	zero_for_sensitivity ()
	zeroes the output quantity values stored inside this object so that assembly process can begin. More...

Public Member Functions inherited from MAST::OutputAssemblyElemOperations
	OutputAssemblyElemOperations ()

virtual	~OutputAssemblyElemOperations ()
	virtual destructor More...

const std::set< libMesh::boundary_id_type > &	get_participating_boundaries ()

const std::set< const libMesh::Elem * > &	get_participating_elements () const

const std::set< libMesh::subdomain_id_type > &	get_participating_subdomains ()

virtual bool	if_evaluate_for_boundary (const MAST::GeomElem &elem, const unsigned int s) const
	checks to see if the specified side of the element needs evaluation of the output contribution. More...

virtual bool	if_evaluate_for_element (const MAST::GeomElem &elem) const
	checks to see if the object has been told about the subset of elements and if the specified element is in the subset. More...

void	set_participating_boundaries (const std::set< libMesh::boundary_id_type > &bids)
	The assembly will integration over boudnaries with ids specified in `bids`. More...

void	set_participating_elements (const std::set< const libMesh::Elem *> &elems)
	sets the elements for which this object will evaluate and store the output data. More...

void	set_participating_elements_to_all ()
	This will allow volume contribution from all elements. More...

void	set_participating_subdomains (const std::set< libMesh::subdomain_id_type > &sids)
	The output function can be a boundary integrated quantity, volume integrated quantity or a combination of these two. More...

Public Member Functions inherited from MAST::AssemblyElemOperations
	AssemblyElemOperations ()

virtual	~AssemblyElemOperations ()

virtual void	clear_assembly ()
	clears the assembly object More...

virtual void	clear_discipline_and_system ()
	clears association with a system to this discipline More...

virtual void	clear_elem ()
	clears the element initialization More...

virtual MAST::AssemblyBase &	get_assembly ()

MAST::PhysicsDisciplineBase &	get_discipline ()

virtual std::pair< const MAST::FieldFunction< RealVectorX > *, unsigned int >	get_elem_boundary_velocity_data ()
	searches through the side load data and populates the data with the boundary id and velocity function on the boundary. More...

MAST::ElementBase &	get_physics_elem ()

MAST::SystemInitialization &	get_system_initialization ()

virtual void	set_assembly (MAST::AssemblyBase &assembly)
	sets the assembly object More...

virtual void	set_discipline_and_system (MAST::PhysicsDisciplineBase &discipline, MAST::SystemInitialization &system)
	attaches a system to this discipline More...

virtual void	set_elem_acceleration (const RealVectorX &accel)
	sets the element acceleration More...

virtual void	set_elem_acceleration_sensitivity (const RealVectorX &accel)
	sets the element acceleration More...

virtual void	set_elem_perturbed_acceleration (const RealVectorX &accel)
	sets the element perturbed acceleration More...

virtual void	set_elem_perturbed_solution (const RealVectorX &sol)
	sets the element perturbed solution More...

virtual void	set_elem_perturbed_velocity (const RealVectorX &vel)
	sets the element perturbed velocity More...

virtual void	set_elem_solution (const RealVectorX &sol)
	sets the element solution More...

virtual void	set_elem_solution_sensitivity (const RealVectorX &sol)
	sets the element solution sensitivity More...

virtual void	set_elem_velocity (const RealVectorX &vel)
	sets the element velocity More...

virtual void	set_elem_velocity_sensitivity (const RealVectorX &vel)
	sets the element velocity sensitivity More...

void	set_skip_comm_sum (bool skip)
	If an output has contrinutions only from local processor then the user can request that the global comm().sum() calls be skipped to avoid blocking MPI calls. More...

Additional Inherited Members
Protected Attributes inherited from MAST::StressStrainOutputBase
std::map< const libMesh::dof_id_type, std::vector< MAST::StressStrainOutputBase::Data * > >	_boundary_stress_data
	vector of stress with the associated location details More...

Real	_exp_arg_lim

bool	_if_stress_plot_mode
	identifies the mode in which evaluation is peformed. More...

Real	_JxW_val

Real	_p_norm_stress
	norm to be used for calculation of output stress function. More...

Real	_p_norm_weight

bool	_primal_data_initialized
	primal data, needed for sensitivity and adjoints More...

Real	_rho
	exponent used in scaling volume based on stress value. More...

Real	_sigma0
	reference stress value used in scaling volume. More...

Real	_sigma_vm_int

Real	_sigma_vm_p_norm

std::map< const libMesh::dof_id_type, std::vector< MAST::StressStrainOutputBase::Data * > >	_stress_data
	vector of stress with the associated location details More...

Protected Attributes inherited from MAST::OutputAssemblyElemOperations
std::set< libMesh::boundary_id_type >	_bids
	set of bids for which data will be processed More...

std::set< const libMesh::Elem * >	_elem_subset
	set of elements for which the data will be stored. More...

bool	_if_evaluate_on_all_elems
	if true, evaluates on all elements. More...

std::set< libMesh::subdomain_id_type >	_sub_domain_ids
	set of subdomain ids for which data will be processed. More...

Protected Attributes inherited from MAST::AssemblyElemOperations
MAST::AssemblyBase *	_assembly

MAST::PhysicsDisciplineBase *	_discipline

MAST::ElementBase *	_physics_elem

bool	_skip_comm_sum
	If an output has contrinutions only from local processor then the user can request that the global comm().sum() calls be skipped to avoid blocking MPI calls. More...

MAST::SystemInitialization *	_system

Constructor & Destructor Documentation

◆ KSStressStrainOutput()

MAST::KSStressStrainOutput::KSStressStrainOutput ( )

default constructor

Definition at line 37 of file ks_stress_output.cpp.

◆ ~KSStressStrainOutput()

MAST::KSStressStrainOutput::~KSStressStrainOutput ( )

virtual

Definition at line 45 of file ks_stress_output.cpp.

Member Function Documentation

◆ functional_boundary_sensitivity_for_elem()

void MAST::KSStressStrainOutput::functional_boundary_sensitivity_for_elem	(	const MAST::FunctionBase &	f,
		const libMesh::dof_id_type	e_id,
		Real &	dsigma_vm_val_df
	)		const

virtual

calculates and returns the boundary sensitivity of von Mises p-norm functional for the element e.

Reimplemented from MAST::StressStrainOutputBase.

Definition at line 156 of file ks_stress_output.cpp.

◆ functional_for_all_elems()

void MAST::KSStressStrainOutput::functional_for_all_elems ( )

virtual

calculates and returns the von Mises p-norm functional for all the elements that this object currently stores data for.

This is defined as

$\left( \frac{\int_\Omega (\sigma_{VM}(\Omega))^p ~ d\Omega}{\int_\Omega ~ d\Omega} \right)^{\frac{1}{p}}$

Reimplemented from MAST::StressStrainOutputBase.

Definition at line 53 of file ks_stress_output.cpp.

◆ functional_sensitivity_for_elem()

void MAST::KSStressStrainOutput::functional_sensitivity_for_elem	(	const MAST::FunctionBase &	f,
		const libMesh::dof_id_type	e_id,
		Real &	dsigma_vm_val_df
	)		const

virtual

calculates and returns the sensitivity of von Mises p-norm functional for the element e.

Reimplemented from MAST::StressStrainOutputBase.

Definition at line 110 of file ks_stress_output.cpp.

◆ functional_state_derivartive_for_elem()

void MAST::KSStressStrainOutput::functional_state_derivartive_for_elem	(	const libMesh::dof_id_type	e_id,
		RealVectorX &	dq_dX
	)		const

virtual

calculates and returns the derivative of von Mises p-norm functional wrt state vector for the specified element.

This assumes that the von_Mises_p_norm_functional_for_all_elems() has been called to calculate the primal data. This is defined as

$\frac{ \frac{1}{p} \left( \int_\Omega (\sigma_{VM}(\Omega))^p ~ d\Omega \right)^{\frac{1}{p}-1}}{\left( \int_\Omega ~ d\Omega \right)^{\frac{1}{p}}} \int_\Omega p (\sigma_{VM}(\Omega))^{p-1} \frac{d \sigma_{VM}(\Omega)}{dX} ~ d\Omega$

Reimplemented from MAST::StressStrainOutputBase.

Definition at line 201 of file ks_stress_output.cpp.

The documentation for this class was generated from the following files:

/home/travis/build/MASTmultiphysics/mast-multiphysics/src/elasticity/ks_stress_output.h
/home/travis/build/MASTmultiphysics/mast-multiphysics/src/elasticity/ks_stress_output.cpp

Detailed Description

Public Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ KSStressStrainOutput()

◆ ~KSStressStrainOutput()

Member Function Documentation

◆ functional_boundary_sensitivity_for_elem()

◆ functional_for_all_elems()

◆ functional_sensitivity_for_elem()

◆ functional_state_derivartive_for_elem()
