Detailed Description

Data structure provides the mechanism to store stress and strain output from a structural analysis.

The user may specify one of three evaluation modes: centroid, element quadrature points, or user specified element local points.

This is, by default, a 3D tensor that should be initialized with 6 components. The first three components of stress are the direct stresses in the $ x, y, z$ directions, $\sigma_{xx}, \sigma_{yy}, \sigma_{zz}$ , and the next three components are the shear stresses $\tau_{xy}, \tau_{yz}, \tau_{xz}$ .

The first three components of strain are the direct strains in the $x, y, z$ directions, $\epsilon_{xx}, \epsilon_{yy}, \epsilon_{zz}$ , and the next three components are the engineering shear strains $\gamma_{xy}, \gamma_{yz}, \gamma_{xz}$ .

Definition at line 61 of file stress_output_base.h.

#include <stress_output_base.h>

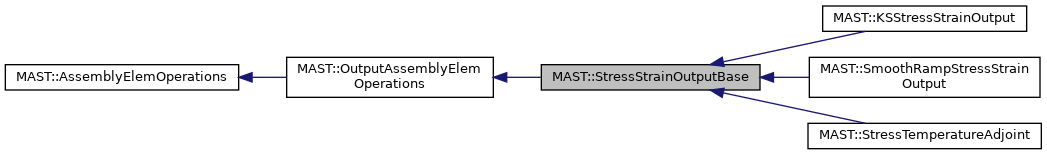

Inheritance diagram for MAST::StressStrainOutputBase:

[legend]

Collaboration diagram for MAST::StressStrainOutputBase:

[legend]

Classes
class	Data
	This class provides a mechanism to store stress/strain values, their derivatives and sensitivity values corresponding to a specific quadrature point on the element. More...

Public Member Functions
	StressStrainOutputBase ()
	default constructor More...

virtual	~StressStrainOutputBase ()

virtual MAST::StressStrainOutputBase::Data &	add_stress_strain_at_boundary_qp_location (const MAST::GeomElem &e, const unsigned int s, const unsigned int qp, const libMesh::Point &quadrature_pt, const libMesh::Point &physical_pt, const RealVectorX &stress, const RealVectorX &strain, Real JxW_Vn)
	add the stress tensor associated with the `qp` on side `s` of element `e`. More...

virtual MAST::StressStrainOutputBase::Data &	add_stress_strain_at_qp_location (const MAST::GeomElem &e, const unsigned int qp, const libMesh::Point &quadrature_pt, const libMesh::Point &physical_pt, const RealVectorX &stress, const RealVectorX &strain, Real JxW)
	add the stress tensor associated with the qp. More...

void	clear ()
	clears the data structure of any stored values so that it can be used for another element. More...

virtual void	clear_sensitivity_data ()
	clears the data stored for sensitivity analysis. More...

virtual void	evaluate ()
	this evaluates all relevant stress components on the element to evaluate the p-averaged quantity. More...

virtual void	evaluate_sensitivity (const MAST::FunctionBase &f)
	this evaluates all relevant stress sensitivity components on the element to evaluate the p-averaged quantity sensitivity. More...

virtual void	evaluate_shape_sensitivity (const MAST::FunctionBase &f)
	this evaluates all relevant shape sensitivity components on the element. More...

virtual void	evaluate_topology_sensitivity (const MAST::FunctionBase &f)
	this evaluates all relevant topological sensitivity components on the element. More...

virtual void	evaluate_topology_sensitivity (const MAST::FunctionBase &f, const MAST::FieldFunction< RealVectorX > &vel)
	This evaluates the contribution to the topology sensitivity on the boundary. More...

virtual void	functional_boundary_sensitivity_for_all_elems (const MAST::FunctionBase &f, Real &dsigma_vm_val_df) const
	calculates and returns the sensitivity of von Mises p-norm functional for all the elements that this object currently stores data for. More...

virtual void	functional_boundary_sensitivity_for_elem (const MAST::FunctionBase &f, const libMesh::dof_id_type e_id, Real &dsigma_vm_val_df) const
	calculates and returns the boundary sensitivity of von Mises p-norm functional for the element `e`. More...

virtual void	functional_for_all_elems ()
	calculates and returns the von Mises p-norm functional for all the elements that this object currently stores data for. More...

virtual void	functional_sensitivity_for_all_elems (const MAST::FunctionBase &f, Real &dsigma_vm_val_df) const
	calculates and returns the sensitivity of von Mises p-norm functional for all the elements that this object currently stores data for. More...

virtual void	functional_sensitivity_for_elem (const MAST::FunctionBase &f, const libMesh::dof_id_type e_id, Real &dsigma_vm_val_df) const
	calculates and returns the sensitivity of von Mises p-norm functional for the element `e`. More...

virtual void	functional_state_derivartive_for_elem (const libMesh::dof_id_type e_id, RealVectorX &dq_dX) const
	calculates and returns the derivative of von Mises p-norm functional wrt state vector for the specified element. More...

Real	get_maximum_von_mises_stress () const

Real	get_p_stress_val ()

virtual const std::map< const libMesh::dof_id_type, std::vector< MAST::StressStrainOutputBase::Data * > > &	get_stress_strain_data () const

virtual const std::vector< MAST::StressStrainOutputBase::Data * > &	get_stress_strain_data_for_elem (const MAST::GeomElem &e) const

virtual MAST::StressStrainOutputBase::Data &	get_stress_strain_data_for_elem_at_qp (const MAST::GeomElem &e, const unsigned int qp)

MAST::BoundaryConditionBase *	get_thermal_load_for_elem (const MAST::GeomElem &elem)

virtual void	init (const MAST::GeomElem &elem)
	initialize for the element. More...

unsigned int	n_boundary_stress_strain_data_for_elem (const GeomElem &e) const

unsigned int	n_stress_strain_data_for_elem (const MAST::GeomElem &e) const

virtual void	output_derivative_for_elem (RealVectorX &dq_dX)
	calculates the derivative of p-norm von Mises stress for the norm identified using `set_p_val()`. More...

virtual Real	output_for_elem ()
	should not get called for this output. More...

virtual Real	output_sensitivity_for_elem (const MAST::FunctionBase &p)

virtual Real	output_sensitivity_total (const MAST::FunctionBase &p)

virtual Real	output_total ()

bool	primal_data_initialized () const

void	set_aggregation_coefficients (Real p1, Real p2, Real rho, Real sigma0)
	sets the norm for calculation of stress functional More...

virtual void	set_elem_data (unsigned int dim, const libMesh::Elem &ref_elem, MAST::GeomElem &elem) const
	sets the structural element y-vector if 1D element is used. More...

void	set_stress_plot_mode (bool f)
	tells the object that the calculation is for stress to be output for plotting. More...

bool	stress_plot_mode () const

virtual void	zero_for_analysis ()
	zeroes the output quantity values stored inside this object so that assembly process can begin. More...

virtual void	zero_for_sensitivity ()
	zeroes the output quantity values stored inside this object so that assembly process can begin. More...

Public Member Functions inherited from MAST::OutputAssemblyElemOperations
	OutputAssemblyElemOperations ()

virtual	~OutputAssemblyElemOperations ()
	virtual destructor More...

const std::set< libMesh::boundary_id_type > &	get_participating_boundaries ()

const std::set< const libMesh::Elem * > &	get_participating_elements () const

const std::set< libMesh::subdomain_id_type > &	get_participating_subdomains ()

virtual bool	if_evaluate_for_boundary (const MAST::GeomElem &elem, const unsigned int s) const
	checks to see if the specified side of the element needs evaluation of the output contribution. More...

virtual bool	if_evaluate_for_element (const MAST::GeomElem &elem) const
	checks to see if the object has been told about the subset of elements and if the specified element is in the subset. More...

void	set_participating_boundaries (const std::set< libMesh::boundary_id_type > &bids)
	The assembly will integration over boudnaries with ids specified in `bids`. More...

void	set_participating_elements (const std::set< const libMesh::Elem *> &elems)
	sets the elements for which this object will evaluate and store the output data. More...

void	set_participating_elements_to_all ()
	This will allow volume contribution from all elements. More...

void	set_participating_subdomains (const std::set< libMesh::subdomain_id_type > &sids)
	The output function can be a boundary integrated quantity, volume integrated quantity or a combination of these two. More...

Public Member Functions inherited from MAST::AssemblyElemOperations
	AssemblyElemOperations ()

virtual	~AssemblyElemOperations ()

virtual void	clear_assembly ()
	clears the assembly object More...

virtual void	clear_discipline_and_system ()
	clears association with a system to this discipline More...

virtual void	clear_elem ()
	clears the element initialization More...

virtual MAST::AssemblyBase &	get_assembly ()

MAST::PhysicsDisciplineBase &	get_discipline ()

virtual std::pair< const MAST::FieldFunction< RealVectorX > *, unsigned int >	get_elem_boundary_velocity_data ()
	searches through the side load data and populates the data with the boundary id and velocity function on the boundary. More...

MAST::ElementBase &	get_physics_elem ()

MAST::SystemInitialization &	get_system_initialization ()

virtual void	set_assembly (MAST::AssemblyBase &assembly)
	sets the assembly object More...

virtual void	set_discipline_and_system (MAST::PhysicsDisciplineBase &discipline, MAST::SystemInitialization &system)
	attaches a system to this discipline More...

virtual void	set_elem_acceleration (const RealVectorX &accel)
	sets the element acceleration More...

virtual void	set_elem_acceleration_sensitivity (const RealVectorX &accel)
	sets the element acceleration More...

virtual void	set_elem_perturbed_acceleration (const RealVectorX &accel)
	sets the element perturbed acceleration More...

virtual void	set_elem_perturbed_solution (const RealVectorX &sol)
	sets the element perturbed solution More...

virtual void	set_elem_perturbed_velocity (const RealVectorX &vel)
	sets the element perturbed velocity More...

virtual void	set_elem_solution (const RealVectorX &sol)
	sets the element solution More...

virtual void	set_elem_solution_sensitivity (const RealVectorX &sol)
	sets the element solution sensitivity More...

virtual void	set_elem_velocity (const RealVectorX &vel)
	sets the element velocity More...

virtual void	set_elem_velocity_sensitivity (const RealVectorX &vel)
	sets the element velocity sensitivity More...

void	set_skip_comm_sum (bool skip)
	If an output has contrinutions only from local processor then the user can request that the global comm().sum() calls be skipped to avoid blocking MPI calls. More...

Protected Attributes
std::map< const libMesh::dof_id_type, std::vector< MAST::StressStrainOutputBase::Data * > >	_boundary_stress_data
	vector of stress with the associated location details More...

Real	_exp_arg_lim

bool	_if_stress_plot_mode
	identifies the mode in which evaluation is peformed. More...

Real	_JxW_val

Real	_p_norm_stress
	norm to be used for calculation of output stress function. More...

Real	_p_norm_weight

bool	_primal_data_initialized
	primal data, needed for sensitivity and adjoints More...

Real	_rho
	exponent used in scaling volume based on stress value. More...

Real	_sigma0
	reference stress value used in scaling volume. More...

Real	_sigma_vm_int

Real	_sigma_vm_p_norm

std::map< const libMesh::dof_id_type, std::vector< MAST::StressStrainOutputBase::Data * > >	_stress_data
	vector of stress with the associated location details More...

Protected Attributes inherited from MAST::OutputAssemblyElemOperations
std::set< libMesh::boundary_id_type >	_bids
	set of bids for which data will be processed More...

std::set< const libMesh::Elem * >	_elem_subset
	set of elements for which the data will be stored. More...

bool	_if_evaluate_on_all_elems
	if true, evaluates on all elements. More...

std::set< libMesh::subdomain_id_type >	_sub_domain_ids
	set of subdomain ids for which data will be processed. More...

Protected Attributes inherited from MAST::AssemblyElemOperations
MAST::AssemblyBase *	_assembly

MAST::PhysicsDisciplineBase *	_discipline

MAST::ElementBase *	_physics_elem

bool	_skip_comm_sum
	If an output has contrinutions only from local processor then the user can request that the global comm().sum() calls be skipped to avoid blocking MPI calls. More...

MAST::SystemInitialization *	_system

Constructor & Destructor Documentation

◆ StressStrainOutputBase()

MAST::StressStrainOutputBase::StressStrainOutputBase ( )

default constructor

Definition at line 275 of file stress_output_base.cpp.

◆ ~StressStrainOutputBase()

MAST::StressStrainOutputBase::~StressStrainOutputBase ( )

virtual

Definition at line 293 of file stress_output_base.cpp.

Member Function Documentation

◆ add_stress_strain_at_boundary_qp_location()

MAST::StressStrainOutputBase::Data & MAST::StressStrainOutputBase::add_stress_strain_at_boundary_qp_location	(	const MAST::GeomElem &	e,
		const unsigned int	s,
		const unsigned int	qp,
		const libMesh::Point &	quadrature_pt,
		const libMesh::Point &	physical_pt,
		const RealVectorX &	stress,
		const RealVectorX &	strain,
		Real	JxW_Vn
	)

virtual

add the stress tensor associated with the qp on side s of element e.

Returns: a reference to Data.

Reimplemented in MAST::StressTemperatureAdjoint.

Definition at line 660 of file stress_output_base.cpp.

◆ add_stress_strain_at_qp_location()

MAST::StressStrainOutputBase::Data & MAST::StressStrainOutputBase::add_stress_strain_at_qp_location	(	const MAST::GeomElem &	e,
		const unsigned int	qp,
		const libMesh::Point &	quadrature_pt,
		const libMesh::Point &	physical_pt,
		const RealVectorX &	stress,
		const RealVectorX &	strain,
		Real	JxW
	)

virtual

add the stress tensor associated with the qp.

Returns: a reference to Data.

Reimplemented in MAST::StressTemperatureAdjoint.

Definition at line 613 of file stress_output_base.cpp.

◆ clear()

void MAST::StressStrainOutputBase::clear ( )

clears the data structure of any stored values so that it can be used for another element.

Definition at line 519 of file stress_output_base.cpp.

◆ clear_sensitivity_data()

void MAST::StressStrainOutputBase::clear_sensitivity_data ( )

virtual

clears the data stored for sensitivity analysis.

Definition at line 572 of file stress_output_base.cpp.

◆ evaluate()

void MAST::StressStrainOutputBase::evaluate ( )

virtual

this evaluates all relevant stress components on the element to evaluate the p-averaged quantity.

This is only done on the current element for which this object has been initialized.

Implements MAST::OutputAssemblyElemOperations.

Definition at line 319 of file stress_output_base.cpp.

◆ evaluate_sensitivity()

void MAST::StressStrainOutputBase::evaluate_sensitivity ( const MAST::FunctionBase & f )

virtual

this evaluates all relevant stress sensitivity components on the element to evaluate the p-averaged quantity sensitivity.

This is only done on the current element for which this object has been initialized.

Implements MAST::OutputAssemblyElemOperations.

Definition at line 336 of file stress_output_base.cpp.

◆ evaluate_shape_sensitivity()

virtual void MAST::StressStrainOutputBase::evaluate_shape_sensitivity ( const MAST::FunctionBase & f )

inlinevirtual

this evaluates all relevant shape sensitivity components on the element.

This is only done on the current element for which this object has been initialized.

Implements MAST::OutputAssemblyElemOperations.

Definition at line 326 of file stress_output_base.h.

◆ evaluate_topology_sensitivity() [1/2]

void MAST::StressStrainOutputBase::evaluate_topology_sensitivity ( const MAST::FunctionBase & f )

virtual

this evaluates all relevant topological sensitivity components on the element.

This is only done on the current element for which this object has been initialized.

Implements MAST::OutputAssemblyElemOperations.

Definition at line 357 of file stress_output_base.cpp.

◆ evaluate_topology_sensitivity() [2/2]

void MAST::StressStrainOutputBase::evaluate_topology_sensitivity	(	const MAST::FunctionBase &	f,
		const MAST::FieldFunction< RealVectorX > &	vel
	)

virtual

This evaluates the contribution to the topology sensitivity on the boundary.

Given that the integral is nonlinear due to the $p-$ norm, the expression is quite involved:

$\frac{ \frac{1}{p} \left( \int_\Omega (\sigma_{VM}(\Omega))^p ~ d\Omega \right)^{\frac{1}{p}-1}}{\left( \int_\Omega ~ d\Omega \right)^{\frac{1}{p}}} \int_\Gamma V_n \sigma_{VM}^p ~d\Gamma + \frac{ \frac{-1}{p} \left( \int_\Omega (\sigma_{VM}(\Omega))^p ~ d\Omega \right)^{\frac{1}{p}}}{\left( \int_\Omega ~ d\Omega \right)^{\frac{1+p}{p}}} \int_\Gamma V_n ~d\Gamma$

Implements MAST::OutputAssemblyElemOperations.

Definition at line 385 of file stress_output_base.cpp.

◆ functional_boundary_sensitivity_for_all_elems()

void MAST::StressStrainOutputBase::functional_boundary_sensitivity_for_all_elems	(	const MAST::FunctionBase &	f,
		Real &	dsigma_vm_val_df
	)		const

virtual

calculates and returns the sensitivity of von Mises p-norm functional for all the elements that this object currently stores data for.

This is defined as

$\frac{ \frac{1}{p} \left( \int_\Omega (\sigma_{VM}(\Omega))^p ~ d\Omega \right)^{\frac{1}{p}-1}}{\left( \int_\Omega ~ d\Omega \right)^{\frac{1}{p}}} \int_\Gamma V_n \sigma_{VM}^p ~d\Gamma + \frac{ \frac{-1}{p} \left( \int_\Omega (\sigma_{VM}(\Omega))^p ~ d\Omega \right)^{\frac{1}{p}}}{\left( \int_\Omega ~ d\Omega \right)^{\frac{1+p}{p}}} \int_\Gamma V_n ~d\Gamma$

Definition at line 948 of file stress_output_base.cpp.

◆ functional_boundary_sensitivity_for_elem()

void MAST::StressStrainOutputBase::functional_boundary_sensitivity_for_elem	(	const MAST::FunctionBase &	f,
		const libMesh::dof_id_type	e_id,
		Real &	dsigma_vm_val_df
	)		const

virtual

calculates and returns the boundary sensitivity of von Mises p-norm functional for the element e.

Reimplemented in MAST::KSStressStrainOutput, and MAST::SmoothRampStressStrainOutput.

Definition at line 1051 of file stress_output_base.cpp.

◆ functional_for_all_elems()

void MAST::StressStrainOutputBase::functional_for_all_elems ( )

virtual

calculates and returns the von Mises p-norm functional for all the elements that this object currently stores data for.

This is defined as

$\left( \frac{\int_\Omega (\sigma_{VM}(\Omega))^p ~ d\Omega}{\int_\Omega ~ d\Omega} \right)^{\frac{1}{p}}$

Reimplemented in MAST::KSStressStrainOutput, and MAST::SmoothRampStressStrainOutput.

Definition at line 852 of file stress_output_base.cpp.

◆ functional_sensitivity_for_all_elems()

void MAST::StressStrainOutputBase::functional_sensitivity_for_all_elems	(	const MAST::FunctionBase &	f,
		Real &	dsigma_vm_val_df
	)		const

virtual

calculates and returns the sensitivity of von Mises p-norm functional for all the elements that this object currently stores data for.

This is defined as

$\frac{ \frac{1}{p} \left( \int_\Omega (\sigma_{VM}(\Omega))^p ~ d\Omega \right)^{\frac{1}{p}-1}}{\left( \int_\Omega ~ d\Omega \right)^{\frac{1}{p}}} \int_\Omega p (\sigma_{VM}(\Omega))^{p-1} \frac{d \sigma_{VM}(\Omega)}{d\alpha} ~ d\Omega$

Definition at line 915 of file stress_output_base.cpp.

◆ functional_sensitivity_for_elem()

void MAST::StressStrainOutputBase::functional_sensitivity_for_elem	(	const MAST::FunctionBase &	f,
		const libMesh::dof_id_type	e_id,
		Real &	dsigma_vm_val_df
	)		const

virtual

calculates and returns the sensitivity of von Mises p-norm functional for the element e.

Reimplemented in MAST::KSStressStrainOutput, and MAST::SmoothRampStressStrainOutput.

Definition at line 980 of file stress_output_base.cpp.

◆ functional_state_derivartive_for_elem()

void MAST::StressStrainOutputBase::functional_state_derivartive_for_elem	(	const libMesh::dof_id_type	e_id,
		RealVectorX &	dq_dX
	)		const

virtual

calculates and returns the derivative of von Mises p-norm functional wrt state vector for the specified element.

This assumes that the von_Mises_p_norm_functional_for_all_elems() has been called to calculate the primal data. This is defined as

$\frac{ \frac{1}{p} \left( \int_\Omega (\sigma_{VM}(\Omega))^p ~ d\Omega \right)^{\frac{1}{p}-1}}{\left( \int_\Omega ~ d\Omega \right)^{\frac{1}{p}}} \int_\Omega p (\sigma_{VM}(\Omega))^{p-1} \frac{d \sigma_{VM}(\Omega)}{dX} ~ d\Omega$

Reimplemented in MAST::KSStressStrainOutput, and MAST::SmoothRampStressStrainOutput.

Definition at line 1105 of file stress_output_base.cpp.

◆ get_maximum_von_mises_stress()

Real MAST::StressStrainOutputBase::get_maximum_von_mises_stress ( ) const

Returns: the maximum von Mises stress of all stored components

Definition at line 716 of file stress_output_base.cpp.

◆ get_p_stress_val()

Real MAST::StressStrainOutputBase::get_p_stress_val ( )

inline

Returns: the norm for calculation of stress functional

Definition at line 257 of file stress_output_base.h.

◆ get_stress_strain_data()

const std::map< const libMesh::dof_id_type, std::vector< MAST::StressStrainOutputBase::Data * > > & MAST::StressStrainOutputBase::get_stress_strain_data ( ) const

virtual

Returns: the map of stress/strain data for all elems

Reimplemented in MAST::StressTemperatureAdjoint.

Definition at line 708 of file stress_output_base.cpp.

◆ get_stress_strain_data_for_elem()

const std::vector< MAST::StressStrainOutputBase::Data * > & MAST::StressStrainOutputBase::get_stress_strain_data_for_elem ( const MAST::GeomElem & e ) const

virtual

Returns: the vector of stress/strain data for specified elem.

Reimplemented in MAST::StressTemperatureAdjoint.

Definition at line 782 of file stress_output_base.cpp.

◆ get_stress_strain_data_for_elem_at_qp()

MAST::StressStrainOutputBase::Data & MAST::StressStrainOutputBase::get_stress_strain_data_for_elem_at_qp	(	const MAST::GeomElem &	e,
		const unsigned int	qp
	)

virtual

Returns: the vector of stress/strain data for specified elem at the specified quadrature point.

Reimplemented in MAST::StressTemperatureAdjoint.

Definition at line 798 of file stress_output_base.cpp.

◆ get_thermal_load_for_elem()

MAST::BoundaryConditionBase * MAST::StressStrainOutputBase::get_thermal_load_for_elem ( const MAST::GeomElem & elem )

Returns: the thermal load for this element, if present in the the volume loads. A nullptr pointer is returned if no load is present.

Definition at line 817 of file stress_output_base.cpp.

◆ init()

void MAST::StressStrainOutputBase::init ( const MAST::GeomElem & elem )

virtual

initialize for the element.

Implements MAST::AssemblyElemOperations.

Definition at line 503 of file stress_output_base.cpp.

◆ n_boundary_stress_strain_data_for_elem()

unsigned int MAST::StressStrainOutputBase::n_boundary_stress_strain_data_for_elem ( const GeomElem & e ) const

Returns: the number of points for which stress-strain data is stored for the boundary of element.

Definition at line 765 of file stress_output_base.cpp.

◆ n_stress_strain_data_for_elem()

unsigned int MAST::StressStrainOutputBase::n_stress_strain_data_for_elem ( const MAST::GeomElem & e ) const

Returns: the number of points for which stress-strain data is stored for the given element.

Definition at line 748 of file stress_output_base.cpp.

◆ output_derivative_for_elem()

void MAST::StressStrainOutputBase::output_derivative_for_elem ( RealVectorX & dq_dX )

virtual

calculates the derivative of p-norm von Mises stress for the $p-$ norm identified using set_p_val().

The quantity is evaluated over the current element for which this object is initialized.

Implements MAST::OutputAssemblyElemOperations.

Reimplemented in MAST::StressTemperatureAdjoint.

Definition at line 462 of file stress_output_base.cpp.

◆ output_for_elem()

virtual Real MAST::StressStrainOutputBase::output_for_elem ( )

inlinevirtual

should not get called for this output.

Use output_total() instead.

Implements MAST::OutputAssemblyElemOperations.

Definition at line 359 of file stress_output_base.h.

◆ output_sensitivity_for_elem()

Real MAST::StressStrainOutputBase::output_sensitivity_for_elem ( const MAST::FunctionBase & p )

virtual

Returns: the sensitivity of p-norm von Mises stress for the norm identified using set_p_val(). The returned quantity is evaluated for the element for which this object is initialized.

Implements MAST::OutputAssemblyElemOperations.

Definition at line 428 of file stress_output_base.cpp.

◆ output_sensitivity_total()

Real MAST::StressStrainOutputBase::output_sensitivity_total ( const MAST::FunctionBase & p )

virtual

Returns: the output quantity sensitivity for parameter. This method calculates the partial derivative of quantity
$\frac{\partial q(X, p)}{\partial p}$
with respect to parameter . This returns the quantity accumulated over all elements.

Implements MAST::OutputAssemblyElemOperations.

Definition at line 444 of file stress_output_base.cpp.

◆ output_total()

Real MAST::StressStrainOutputBase::output_total ( )

virtual

Returns: the output quantity value accumulated over all elements

Implements MAST::OutputAssemblyElemOperations.

Definition at line 415 of file stress_output_base.cpp.

◆ primal_data_initialized()

bool MAST::StressStrainOutputBase::primal_data_initialized ( ) const

inline

Definition at line 400 of file stress_output_base.h.

◆ set_aggregation_coefficients()

void MAST::StressStrainOutputBase::set_aggregation_coefficients	(	Real	p1,
		Real	p2,
		Real	rho,
		Real	sigma0
	)

inline

sets the $p-$ norm for calculation of stress functional

Definition at line 246 of file stress_output_base.h.

◆ set_elem_data()

void MAST::StressStrainOutputBase::set_elem_data	(	unsigned int	dim,
		const libMesh::Elem &	ref_elem,
		MAST::GeomElem &	elem
	)		const

virtual

sets the structural element y-vector if 1D element is used.

Implements MAST::AssemblyElemOperations.

Definition at line 486 of file stress_output_base.cpp.

◆ set_stress_plot_mode()

void MAST::StressStrainOutputBase::set_stress_plot_mode ( bool f )

inline

tells the object that the calculation is for stress to be output for plotting.

Definition at line 267 of file stress_output_base.h.

◆ stress_plot_mode()

bool MAST::StressStrainOutputBase::stress_plot_mode ( ) const

inline

Definition at line 396 of file stress_output_base.h.

◆ zero_for_analysis()

void MAST::StressStrainOutputBase::zero_for_analysis ( )

virtual

zeroes the output quantity values stored inside this object so that assembly process can begin.

This will zero out data so that it is ready for a new evaluation. Before sensitivity analysis, call the other method, since some nonlinear functionals need the forward quantities for sensitivity analysis, eg., stress output.

Implements MAST::OutputAssemblyElemOperations.

Definition at line 302 of file stress_output_base.cpp.

◆ zero_for_sensitivity()

void MAST::StressStrainOutputBase::zero_for_sensitivity ( )

virtual

zeroes the output quantity values stored inside this object so that assembly process can begin.

This will only zero the data to compute new sensitivity analysis.

Implements MAST::OutputAssemblyElemOperations.

Definition at line 312 of file stress_output_base.cpp.

Member Data Documentation

◆ _boundary_stress_data

std::map<const libMesh::dof_id_type, std::vector<MAST::StressStrainOutputBase::Data*> > MAST::StressStrainOutputBase::_boundary_stress_data

protected

vector of stress with the associated location details

Definition at line 627 of file stress_output_base.h.

◆ _exp_arg_lim

Real MAST::StressStrainOutputBase::_exp_arg_lim

protected

Definition at line 600 of file stress_output_base.h.

◆ _if_stress_plot_mode

bool MAST::StressStrainOutputBase::_if_stress_plot_mode

protected

identifies the mode in which evaluation is peformed.

if p-norm functional is being evaluated then certain requirements are not enforced. This is to be used when stress is being calculated per element for plotting.

Definition at line 614 of file stress_output_base.h.

◆ _JxW_val

Real MAST::StressStrainOutputBase::_JxW_val

protected

Definition at line 606 of file stress_output_base.h.

◆ _p_norm_stress

Real MAST::StressStrainOutputBase::_p_norm_stress

protected

$ p-$ norm to be used for calculation of output stress function.

Default value is 2.0.

Definition at line 588 of file stress_output_base.h.

◆ _p_norm_weight

Real MAST::StressStrainOutputBase::_p_norm_weight

protected

Definition at line 588 of file stress_output_base.h.

◆ _primal_data_initialized

bool MAST::StressStrainOutputBase::_primal_data_initialized

protected

primal data, needed for sensitivity and adjoints

Definition at line 605 of file stress_output_base.h.

◆ _rho

Real MAST::StressStrainOutputBase::_rho

protected

exponent used in scaling volume based on stress value.

Definition at line 593 of file stress_output_base.h.

◆ _sigma0

Real MAST::StressStrainOutputBase::_sigma0

protected

reference stress value used in scaling volume.

Definition at line 598 of file stress_output_base.h.

◆ _sigma_vm_int

Real MAST::StressStrainOutputBase::_sigma_vm_int

protected

Definition at line 606 of file stress_output_base.h.

◆ _sigma_vm_p_norm

Real MAST::StressStrainOutputBase::_sigma_vm_p_norm

protected

Definition at line 606 of file stress_output_base.h.

◆ _stress_data

std::map<const libMesh::dof_id_type, std::vector<MAST::StressStrainOutputBase::Data*> > MAST::StressStrainOutputBase::_stress_data

protected

vector of stress with the associated location details

Definition at line 620 of file stress_output_base.h.

The documentation for this class was generated from the following files:

/home/travis/build/MASTmultiphysics/mast-multiphysics/src/elasticity/stress_output_base.h
/home/travis/build/MASTmultiphysics/mast-multiphysics/src/elasticity/stress_output_base.cpp

Detailed Description

Classes

Public Member Functions

Protected Attributes

Constructor & Destructor Documentation

◆ StressStrainOutputBase()

◆ ~StressStrainOutputBase()

Member Function Documentation

◆ add_stress_strain_at_boundary_qp_location()

◆ add_stress_strain_at_qp_location()

◆ clear()

◆ clear_sensitivity_data()

◆ evaluate()

◆ evaluate_sensitivity()

◆ evaluate_shape_sensitivity()

◆ evaluate_topology_sensitivity() [1/2]

◆ evaluate_topology_sensitivity() [2/2]

◆ functional_boundary_sensitivity_for_all_elems()

◆ functional_boundary_sensitivity_for_elem()

◆ functional_for_all_elems()

◆ functional_sensitivity_for_all_elems()

◆ functional_sensitivity_for_elem()

◆ functional_state_derivartive_for_elem()

◆ get_maximum_von_mises_stress()

◆ get_p_stress_val()

◆ get_stress_strain_data()

◆ get_stress_strain_data_for_elem()

◆ get_stress_strain_data_for_elem_at_qp()

◆ get_thermal_load_for_elem()

◆ init()

◆ n_boundary_stress_strain_data_for_elem()

◆ n_stress_strain_data_for_elem()

◆ output_derivative_for_elem()

◆ output_for_elem()

◆ output_sensitivity_for_elem()

◆ output_sensitivity_total()

◆ output_total()

◆ primal_data_initialized()

◆ set_aggregation_coefficients()

◆ set_elem_data()

◆ set_stress_plot_mode()

◆ stress_plot_mode()

◆ zero_for_analysis()

◆ zero_for_sensitivity()

Member Data Documentation

◆ _boundary_stress_data

◆ _exp_arg_lim

◆ _if_stress_plot_mode

◆ _JxW_val

◆ _p_norm_stress

◆ _p_norm_weight

◆ _primal_data_initialized

◆ _rho

◆ _sigma0

◆ _sigma_vm_int

◆ _sigma_vm_p_norm

◆ _stress_data
